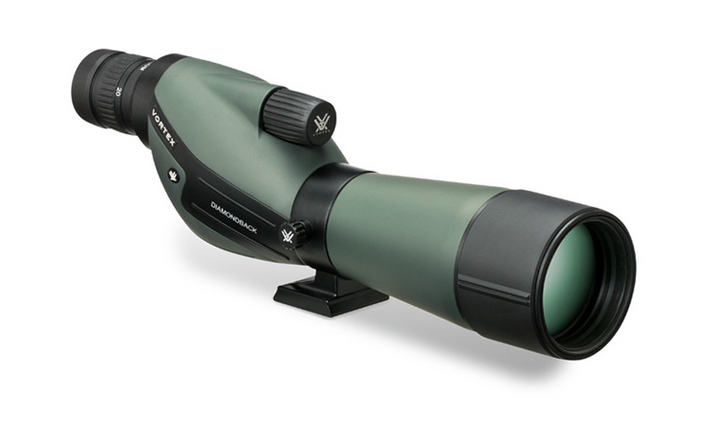

Diamondback® 20-60x60 Spotting Scope
Optical Features
|
| XR™ Fully Multi-Coated |
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Dielectric Prism Coatings |
Multi-layer prism coatings provide bright, clear, color-accurate images. |
Construction Features
|
| Porro Prism |
Offers maximum image quality and performance in a traditional design. |
| Straight Body Design |
Valued for speedy target acquisition and ease of use. Most compatible design for use with car window mounts. |
| Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the spotting scope for reliable performance in all environments. |
| Fogproof |
Nitrogen gas purging delivers fogproof, waterproof performance. |
Convenience Features
|
| Adjustable Eyecup |
Twists up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses. |
| Built-in Sunshade |
Reduces glare and shields the objective lens from raindrops and snow. |
| Rotating Tripod Ring |
Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles. |
Born into the bloodline of our popular Diamondback family, this spotter delivers outstanding performance—clearly a superb choice when you need a heavyweight performer in a light, compact package. The Diamondback optics guarantee a bright image throughout the magnification range and, as true to all Diamondback optics, the rugged construction stands up to rough use in the field.
| Magnification |
20-60 x |
| Objective Lens Diameter |
60 mm |
| Linear Field of View |
114-51 feet/1000 yards |
| Angular Field of View |
2.2-1 degrees |
| Close Focus |
20 feet |
| Eye Relief |
17-14 mm |
| Exit Pupil |
3-1 mm |
| Length |
14.4 inches |
| Weight |
33.8 ounces |
| Product Manual (PDF) |
Download |
